Aimpoint COA

This red dot uses the Aimpoint A-CUT footprint standard.

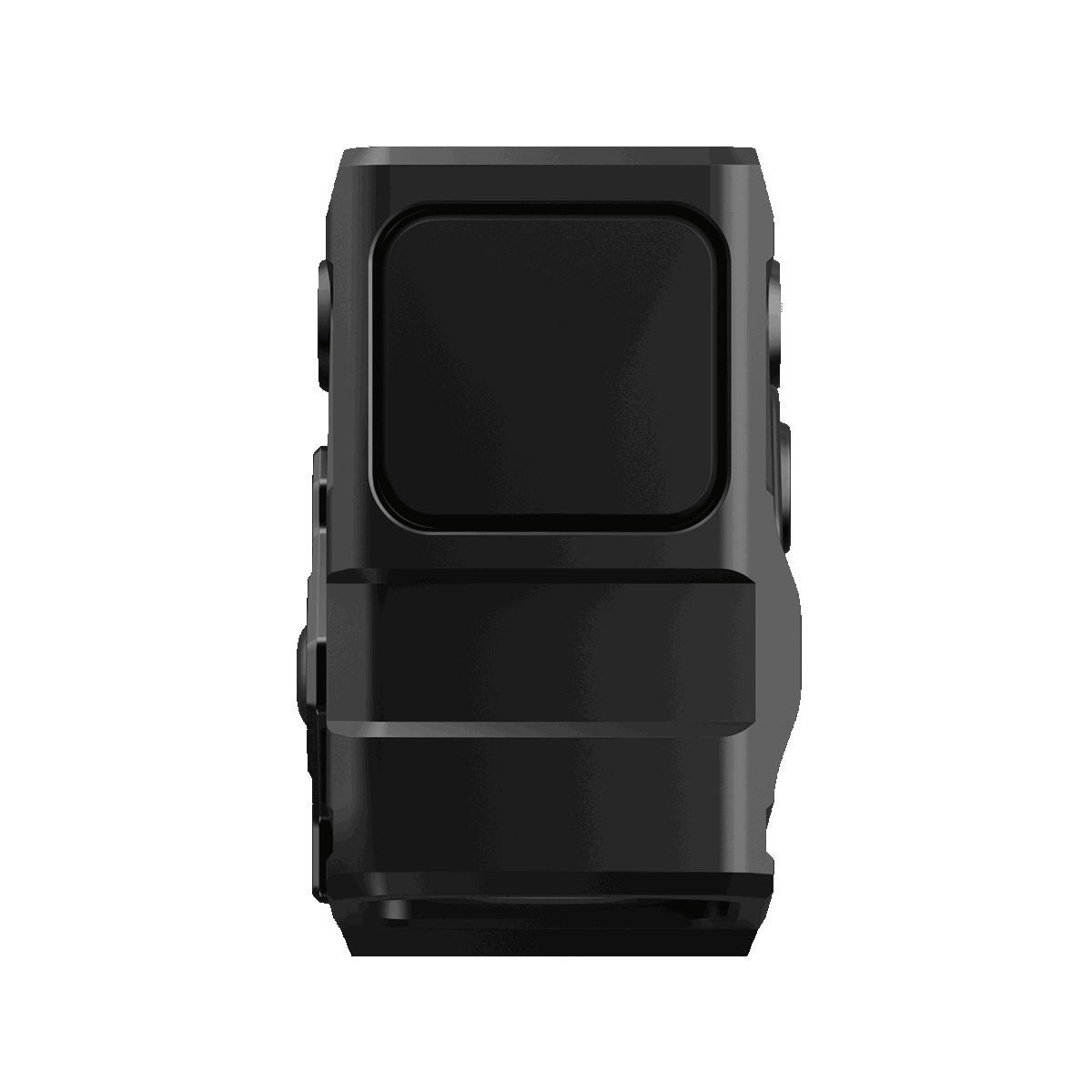

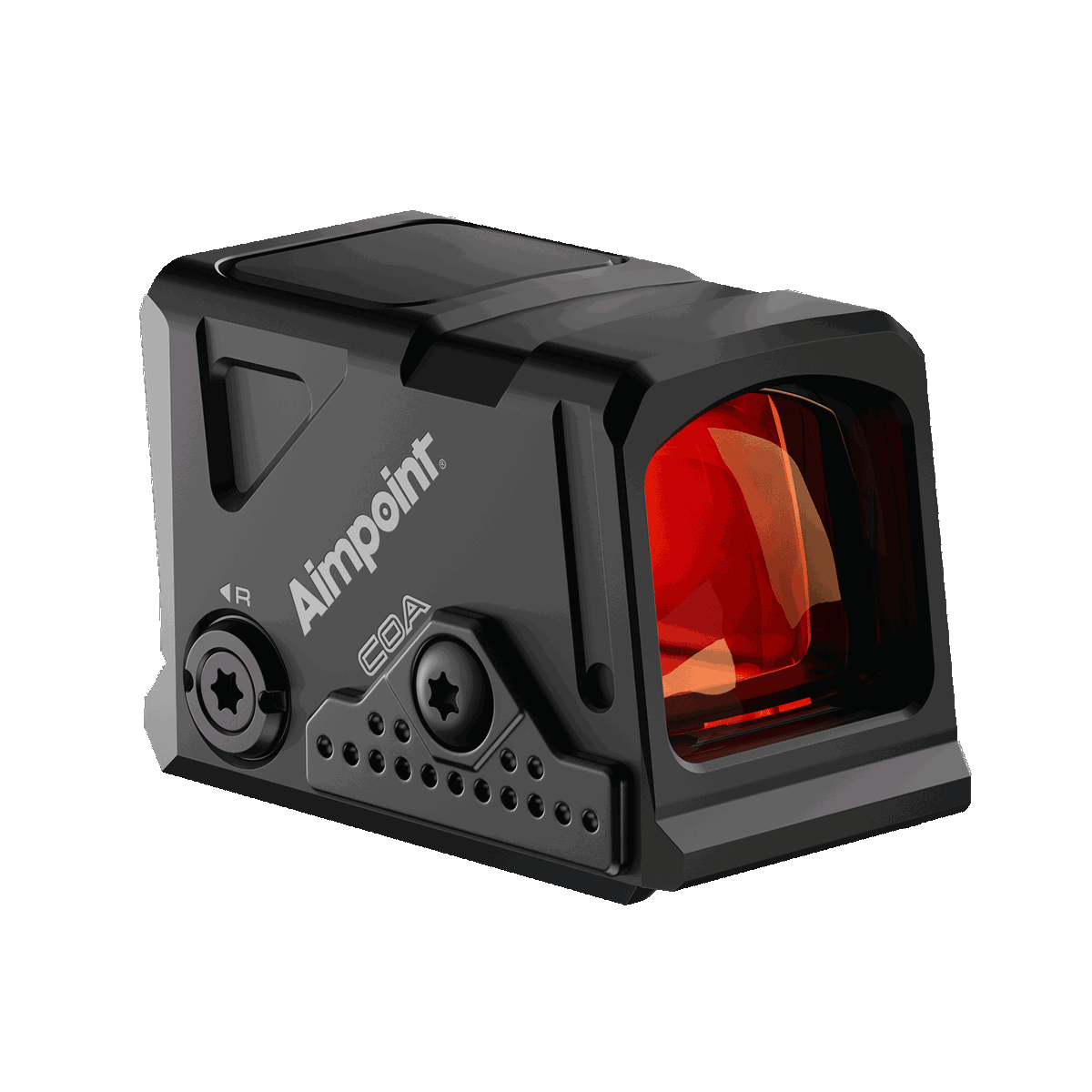

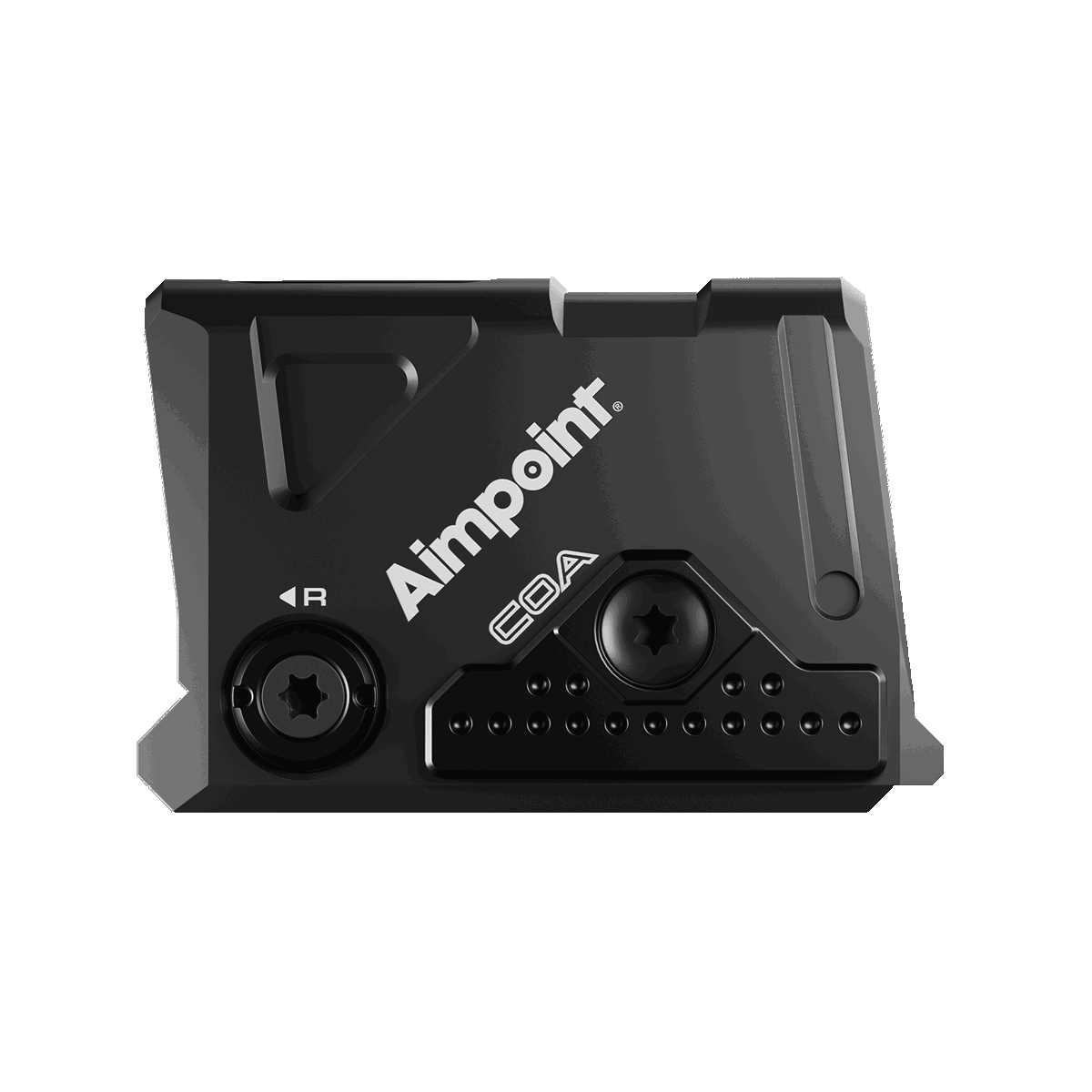

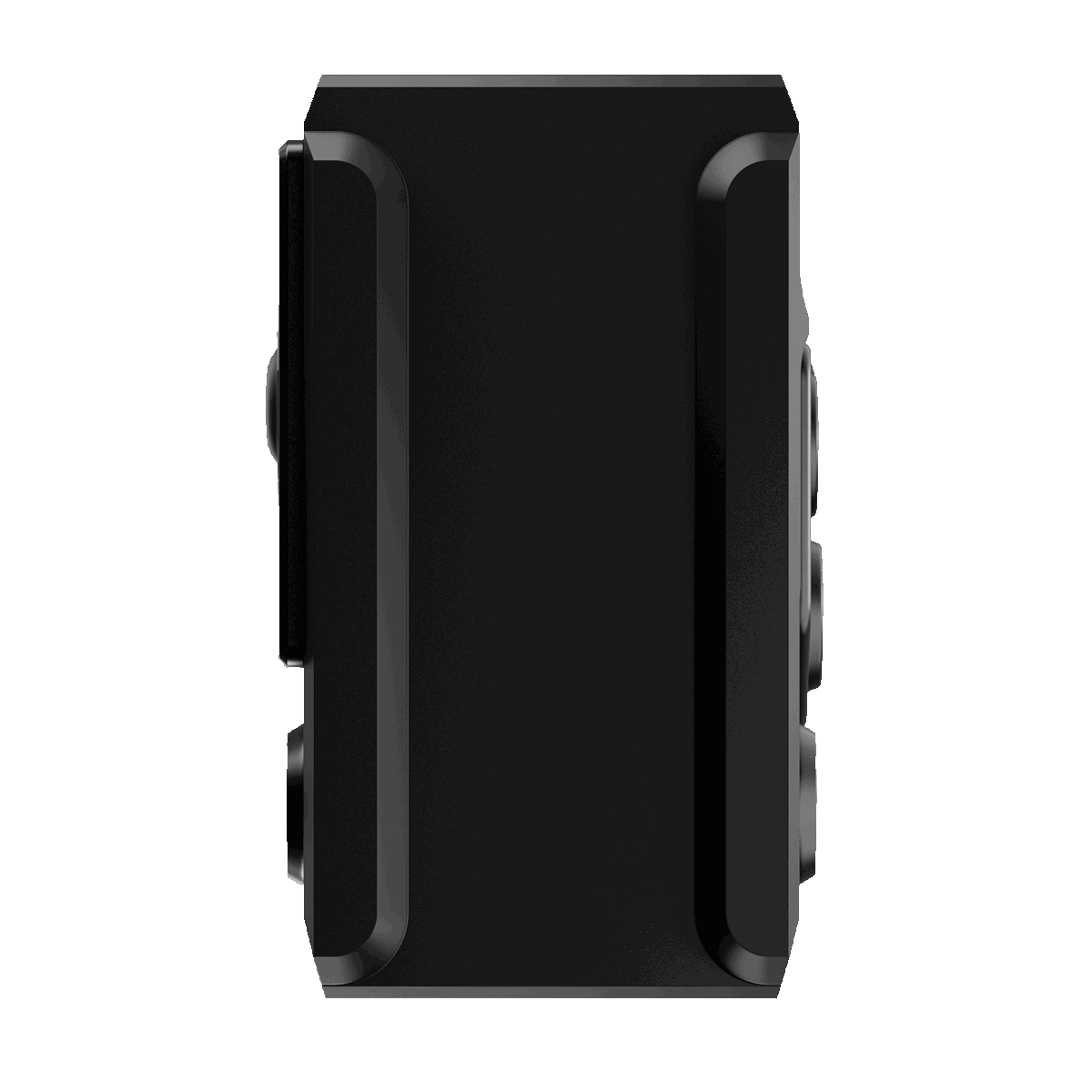

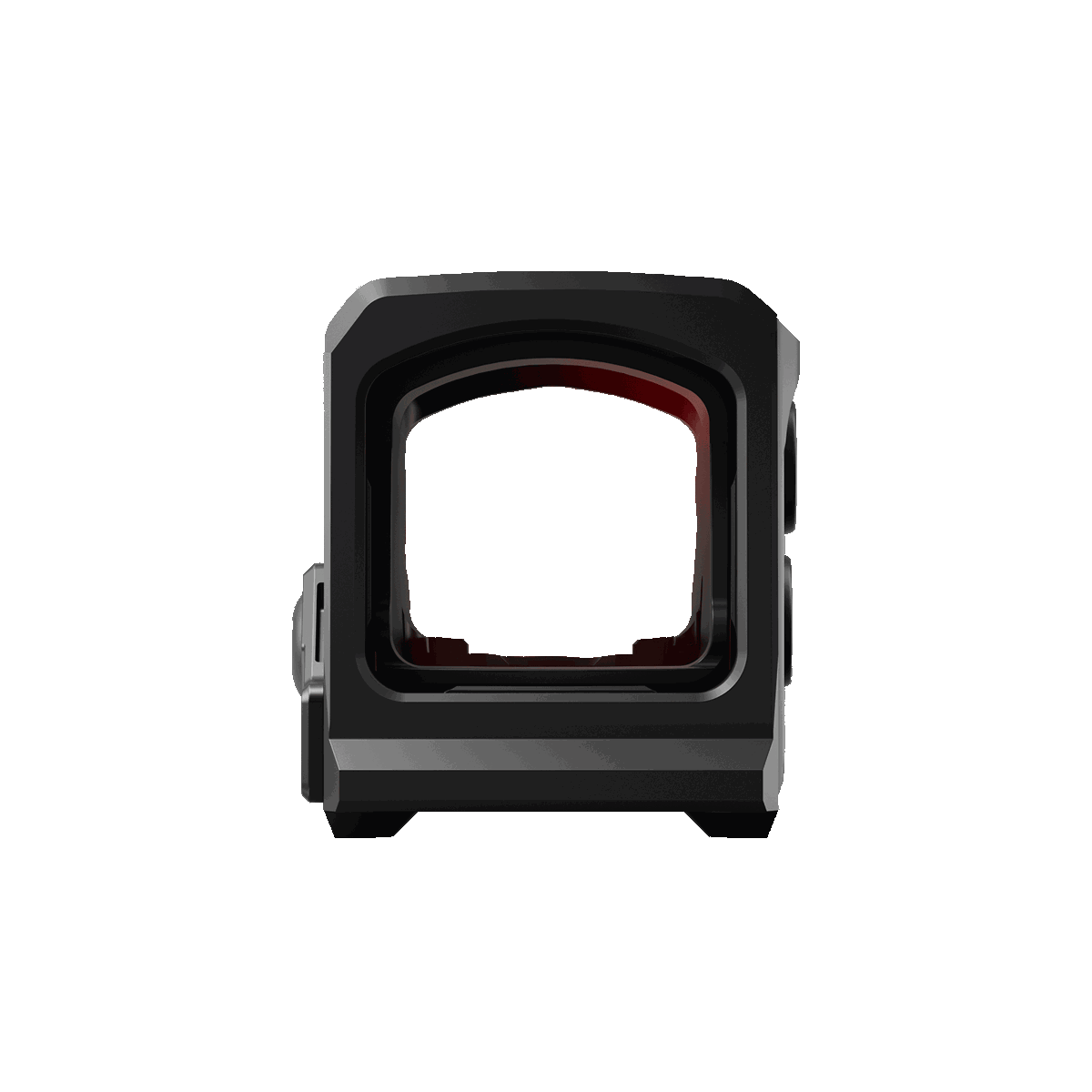

The Aimpoint COA is a slide-mounted pistol reflex sight. The A-CUT interface is machined directly into the slide, with no screws through the optic housing.

Key advantages

• Tubeless open sight picture for fast, both-eyes-open target acquisition, with unlimited eye relief

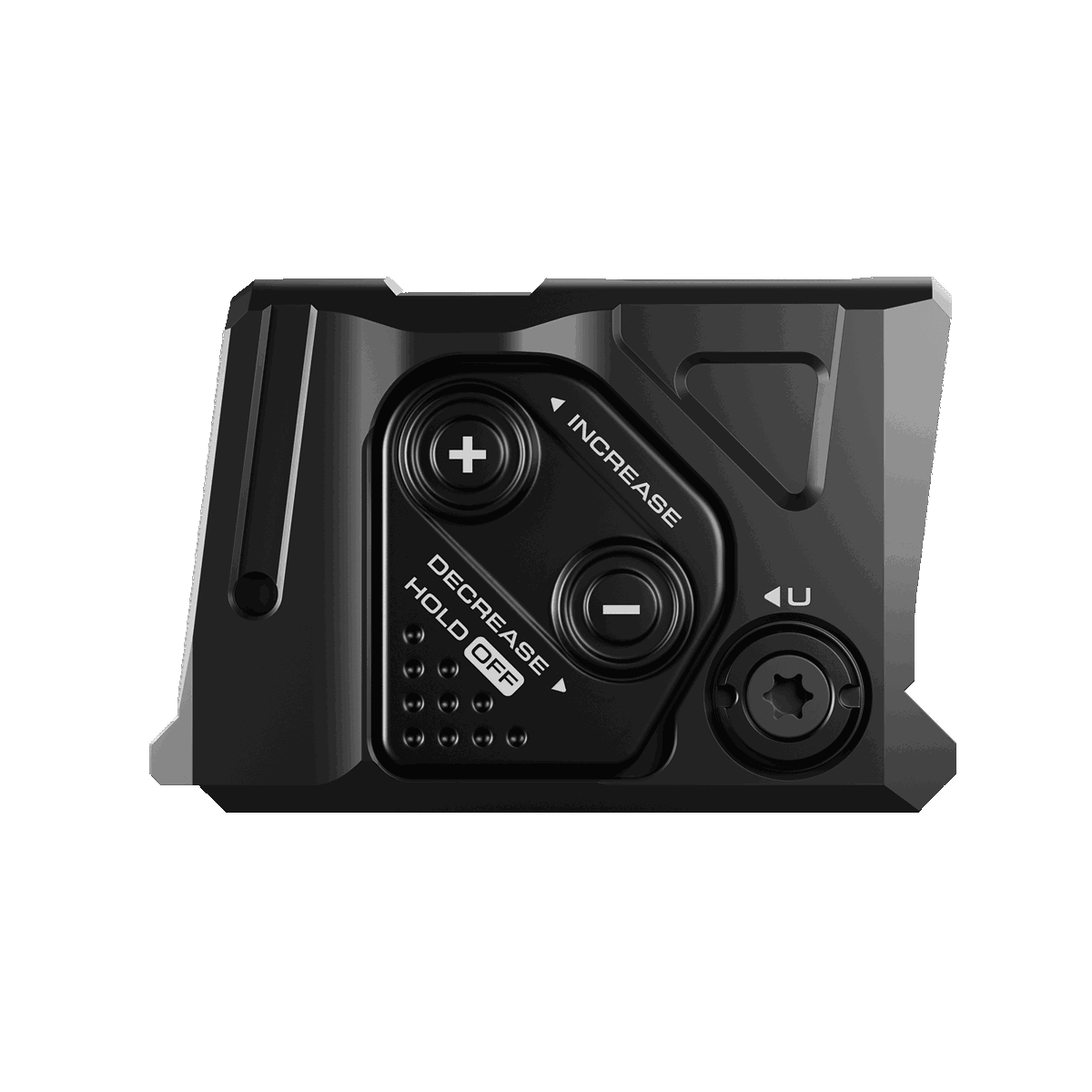

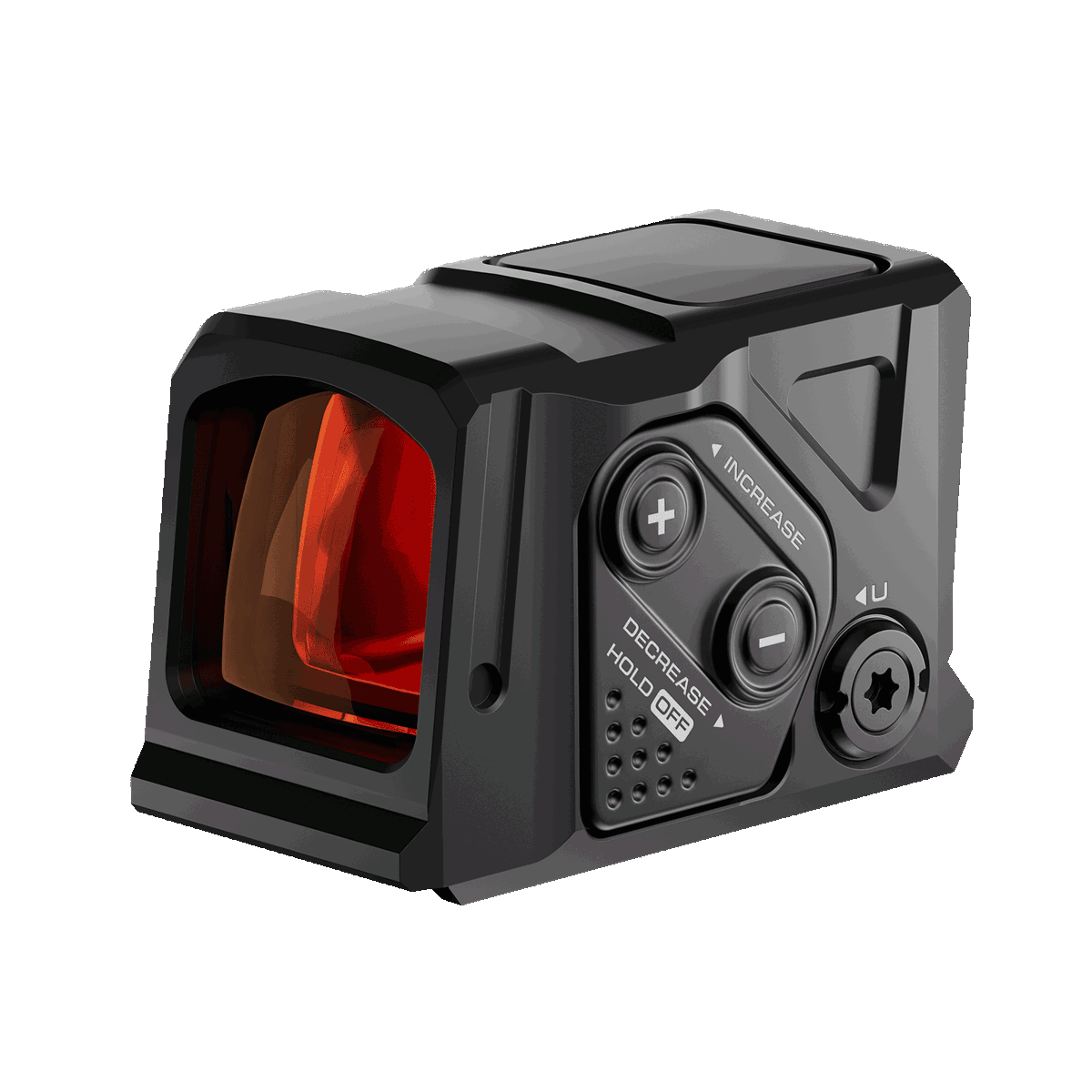

• 12 brightness settings - 4 night vision compatible and 8 daylight - adjustable without removing the optic from the slide
• Co-witness capable with suitable iron sights
• Tested to withstand the recoil of 40,000 rounds of 9mm, mounted on a Glock 45 slide
• Fully enclosed optical channel, sealed against dust and debris

Specification

• Magnification: 1x
• Reticle: 3.5 MOA dot, red
• Illumination: LED, 650 nm red
• Brightness settings: 12 [4 night vision compatible, 8 daylight]
• Eye relief: Unlimited
• Parallax: free, no centering required
• Mounting interface: Aimpoint A-CUT
• Battery type: CR2032
• Battery life: up to 50,000 hours (over 5 years)
• Housing material: 7075-T6 aluminium
• Finish: anodized, semi-matte, matte grey to black
• Operating temperature: -45 °C to +73 °C
• Water resistance: submersible to 25 m
• Shock resistance: tested to 40,000 rounds of 9mm recoil, MIL-STD-810G vibration tested
• Window size: 15 x 15 mm
• Dimensions: 45 x 28 x 30 mm
• Weight: 48 g
