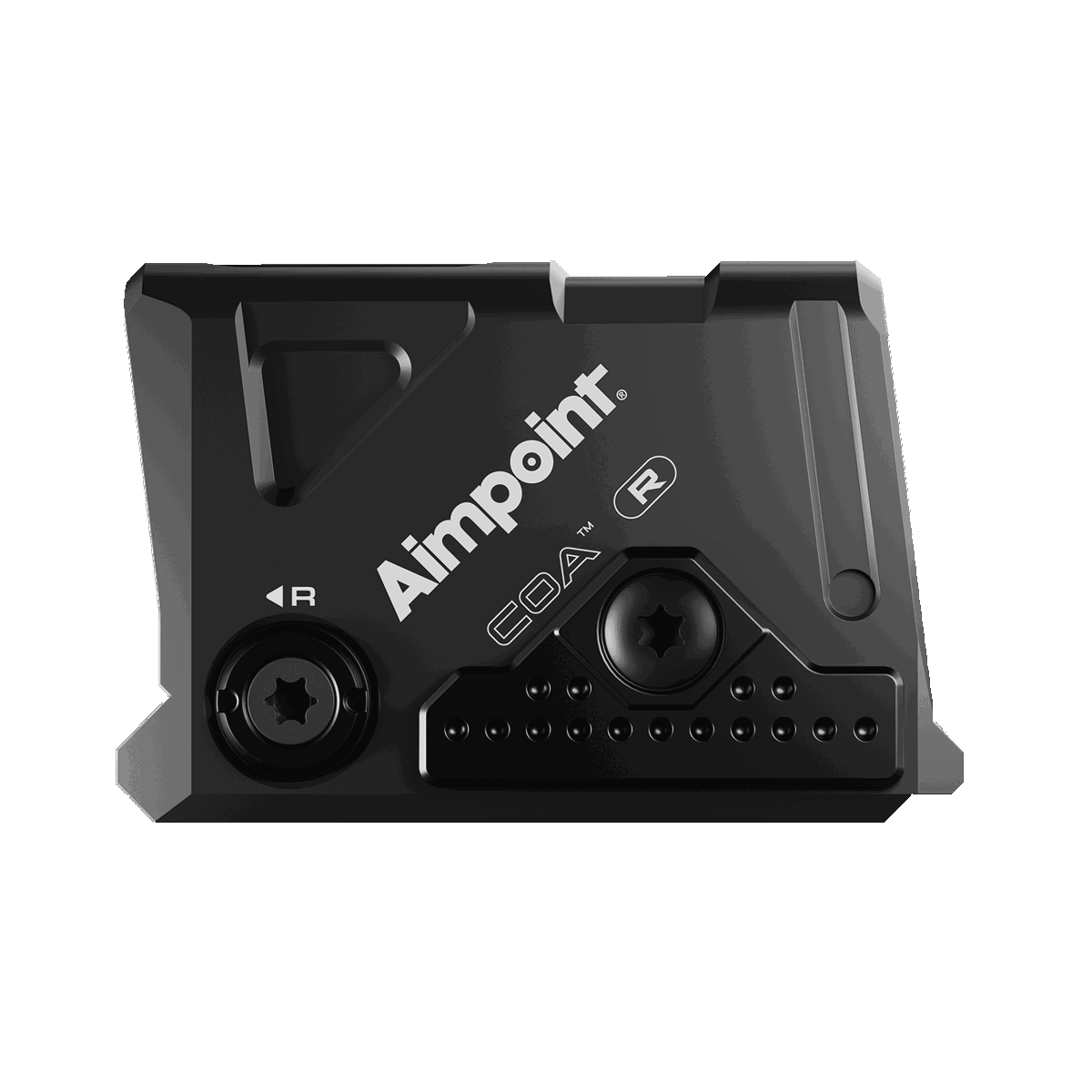

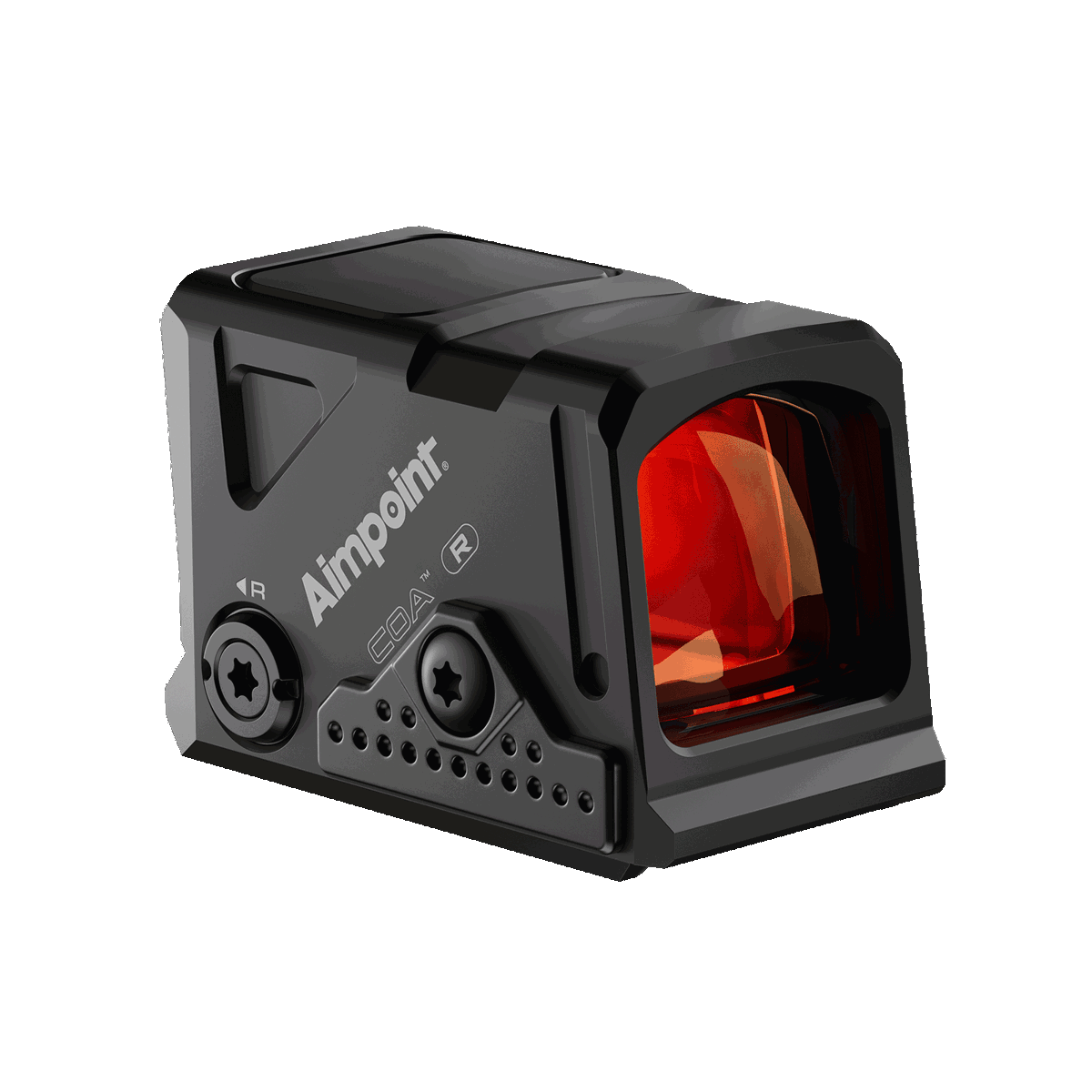

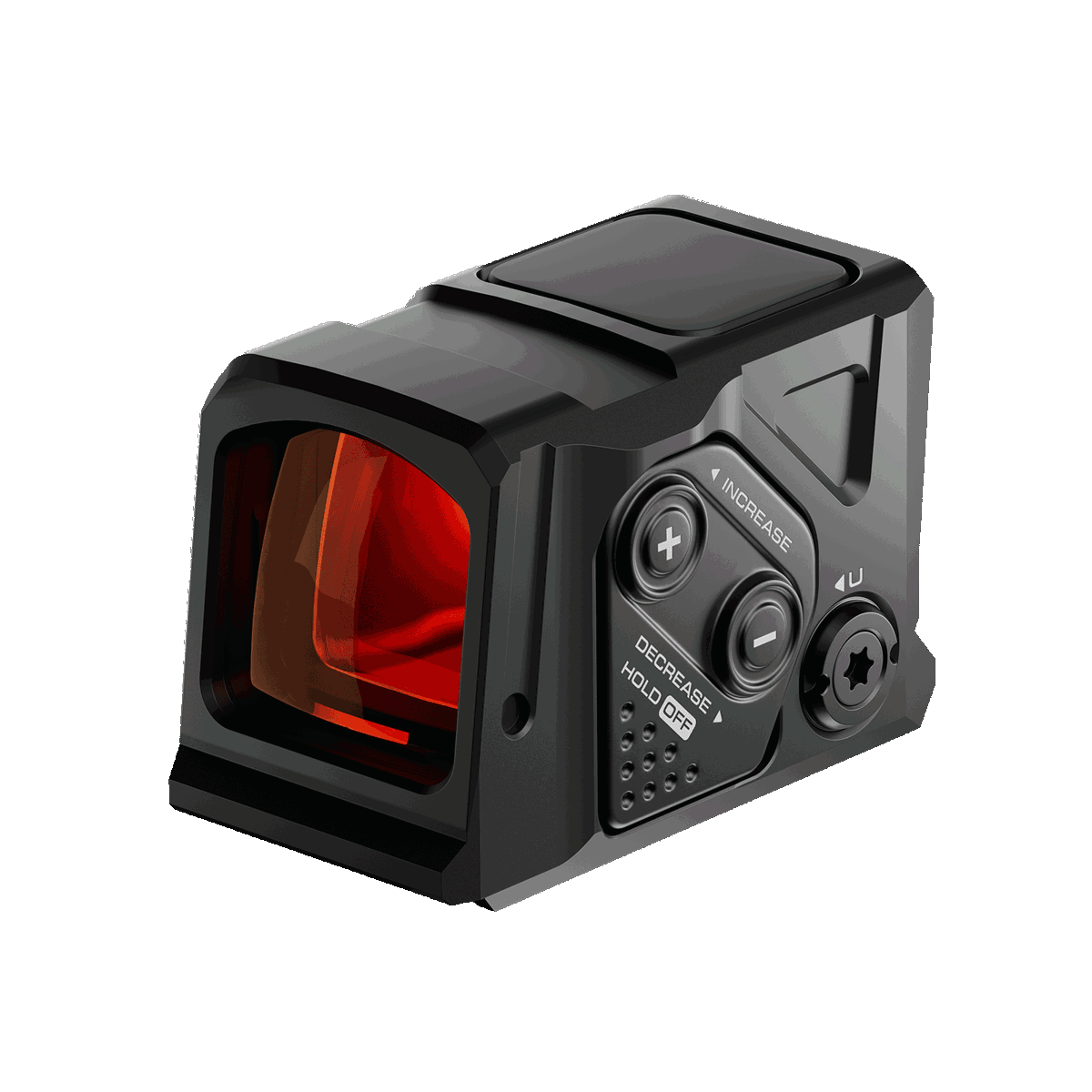

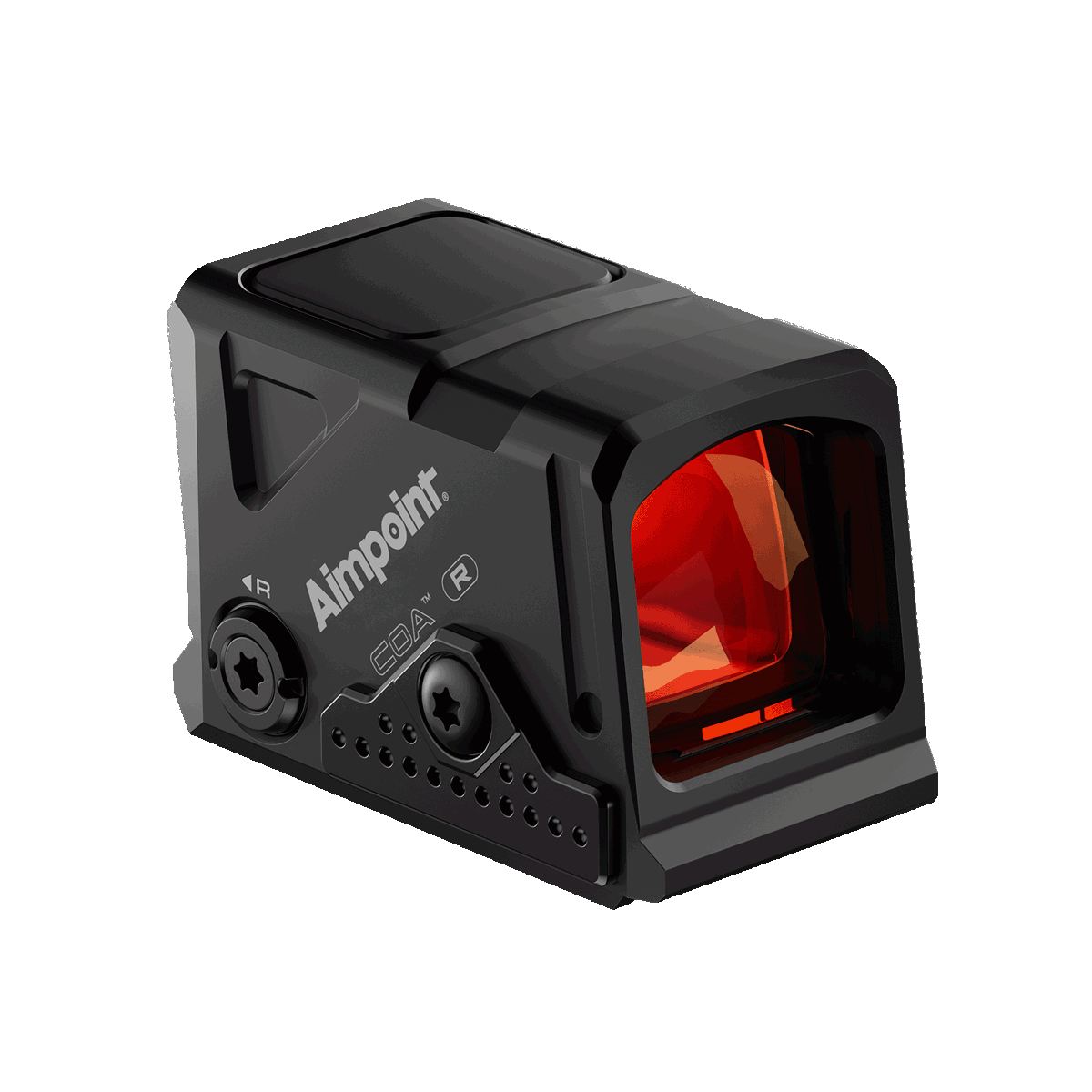

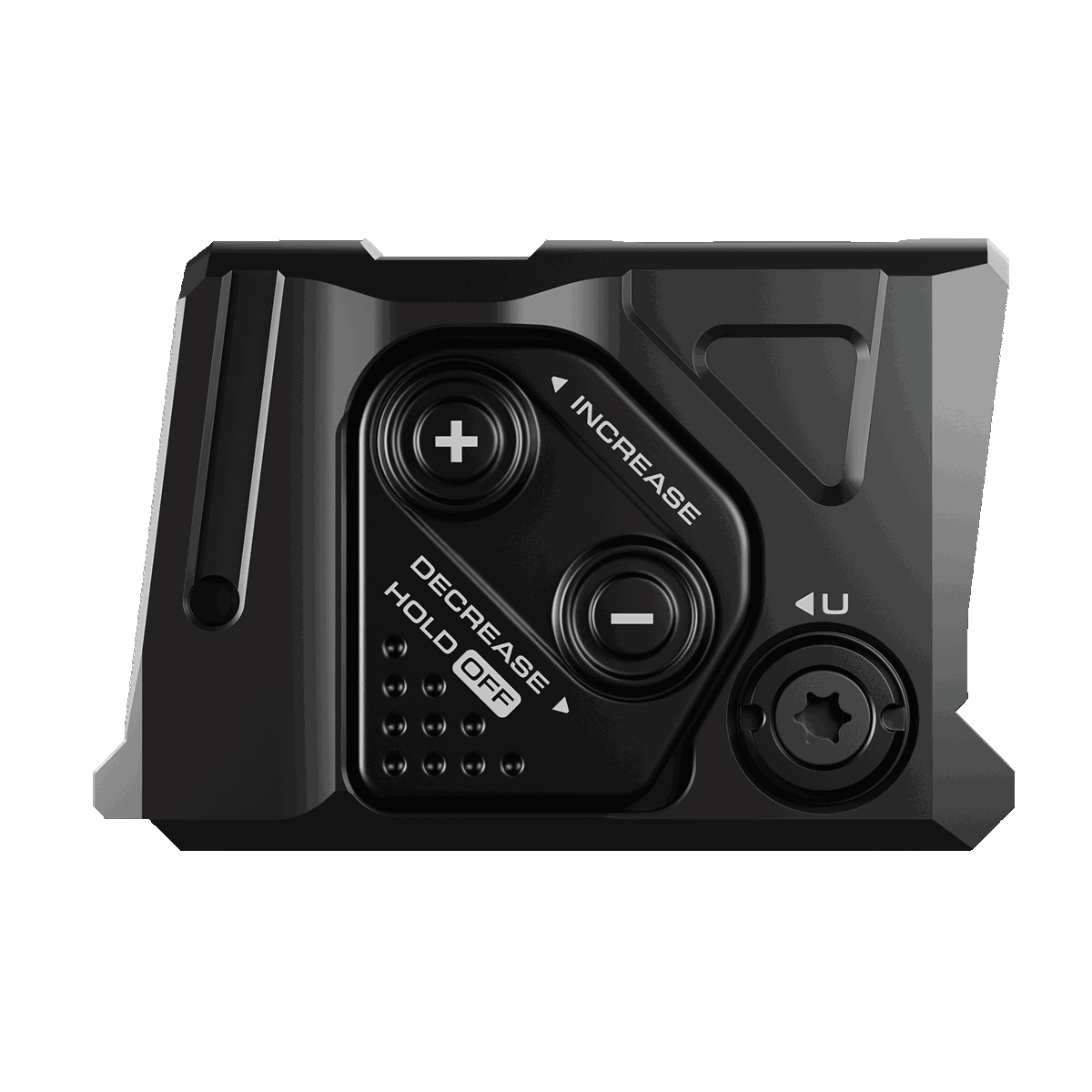

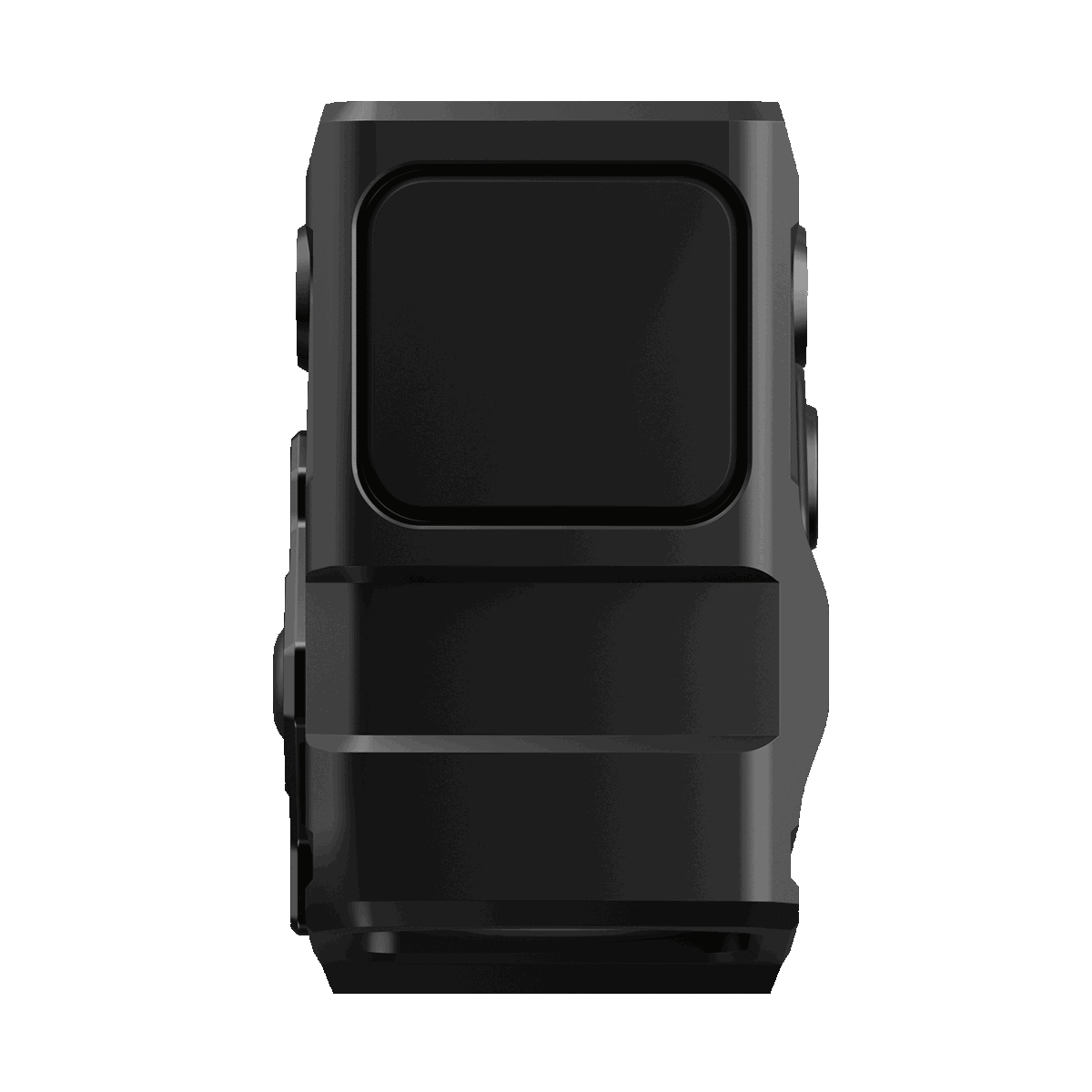

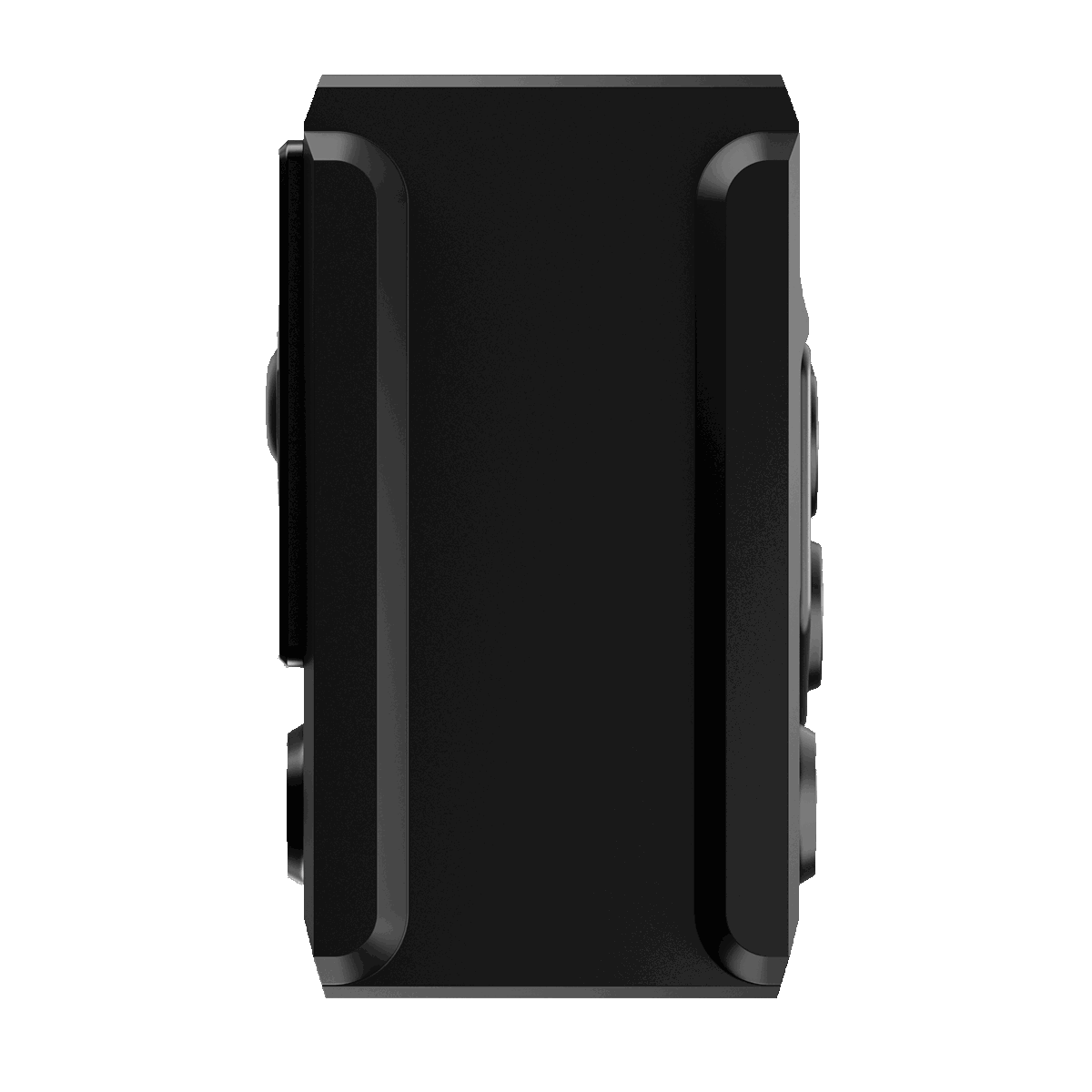

Aimpoint COA R

This red dot uses the Aimpoint A-CUT footprint standard.

The Aimpoint COA R is a rifle reflex sight with the A-CUT interface. It mounts on a dedicated rifle mount, or on mounts set up for the Aimpoint Micro footprint via an A-CUT-to-MICRO conversion plate.

Key advantages

• Tubeless open sight picture with unlimited eye relief and no housing to obstruct the field of view
• 12 brightness settings - 4 night vision compatible and 8 daylight
• Compatible with A-CUT-to-MICRO conversion plates for existing Micro-footprint mounts
• Fully enclosed optical channel, sealed against dust and debris

Specification

• Magnification: 1x
• Reticle: 3.5 MOA dot, red
• Illumination: LED, 650 nm red
• Brightness settings: 12 [4 night vision compatible, 8 daylight]
• Eye relief: Unlimited
• Parallax: free, no centering required
• Mounting interface: Aimpoint A-CUT (rifle mount or A-CUT-to-MICRO conversion plate)
• Battery type: CR2032
• Battery life: up to 50,000 hours at daylight setting 7 (over 5 years)
• Housing material: high-strength aluminium
• Finish: anodized, semi-matte, matte grey to black
• Operating temperature: -32 °C to +60 °C
• Water resistance: submersible to 25 m
• Shock resistance: vibration tested, 10-150 Hz range
• Dimensions: 45 x 28 x 30 mm
• Weight: 48 g (optic only)
