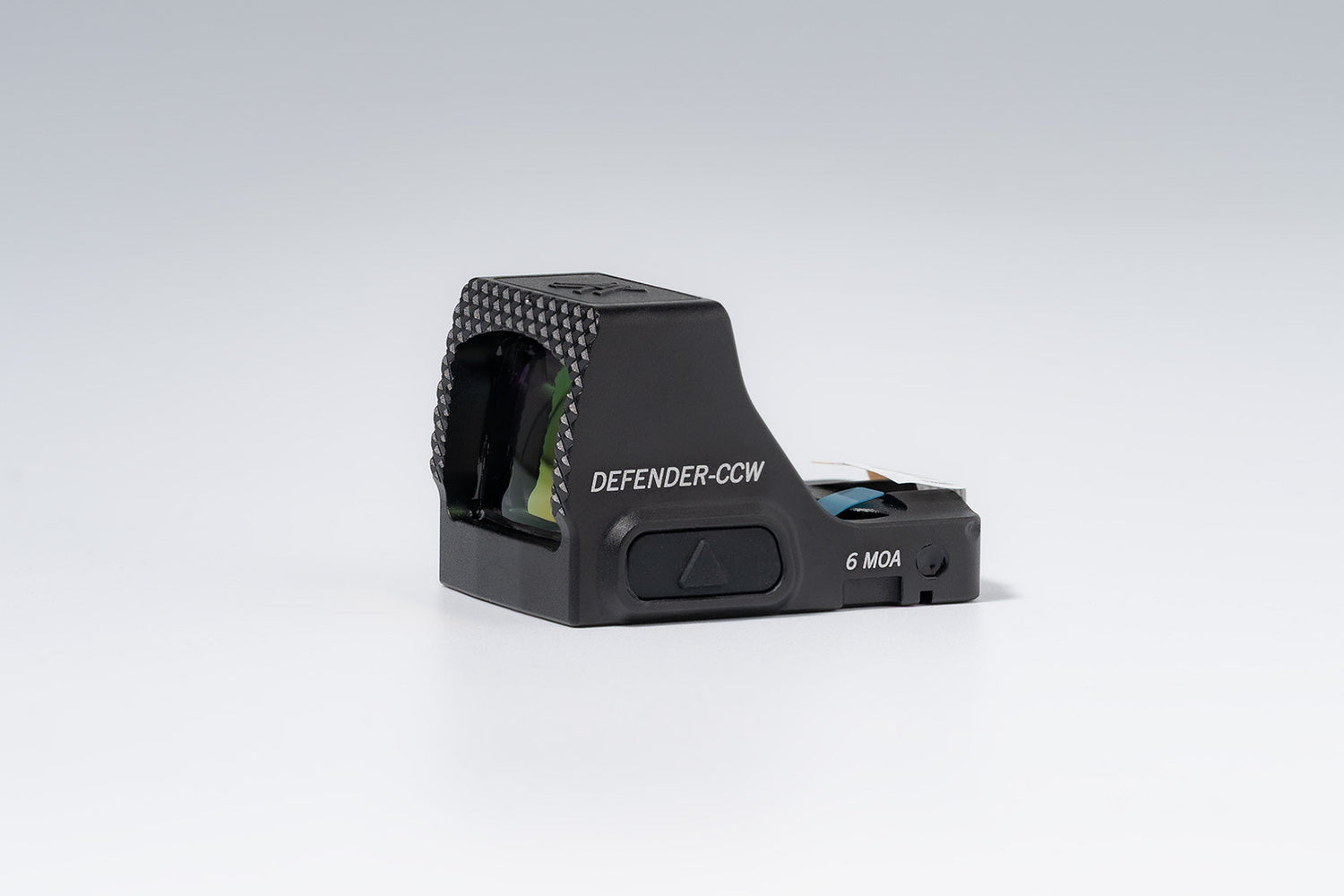

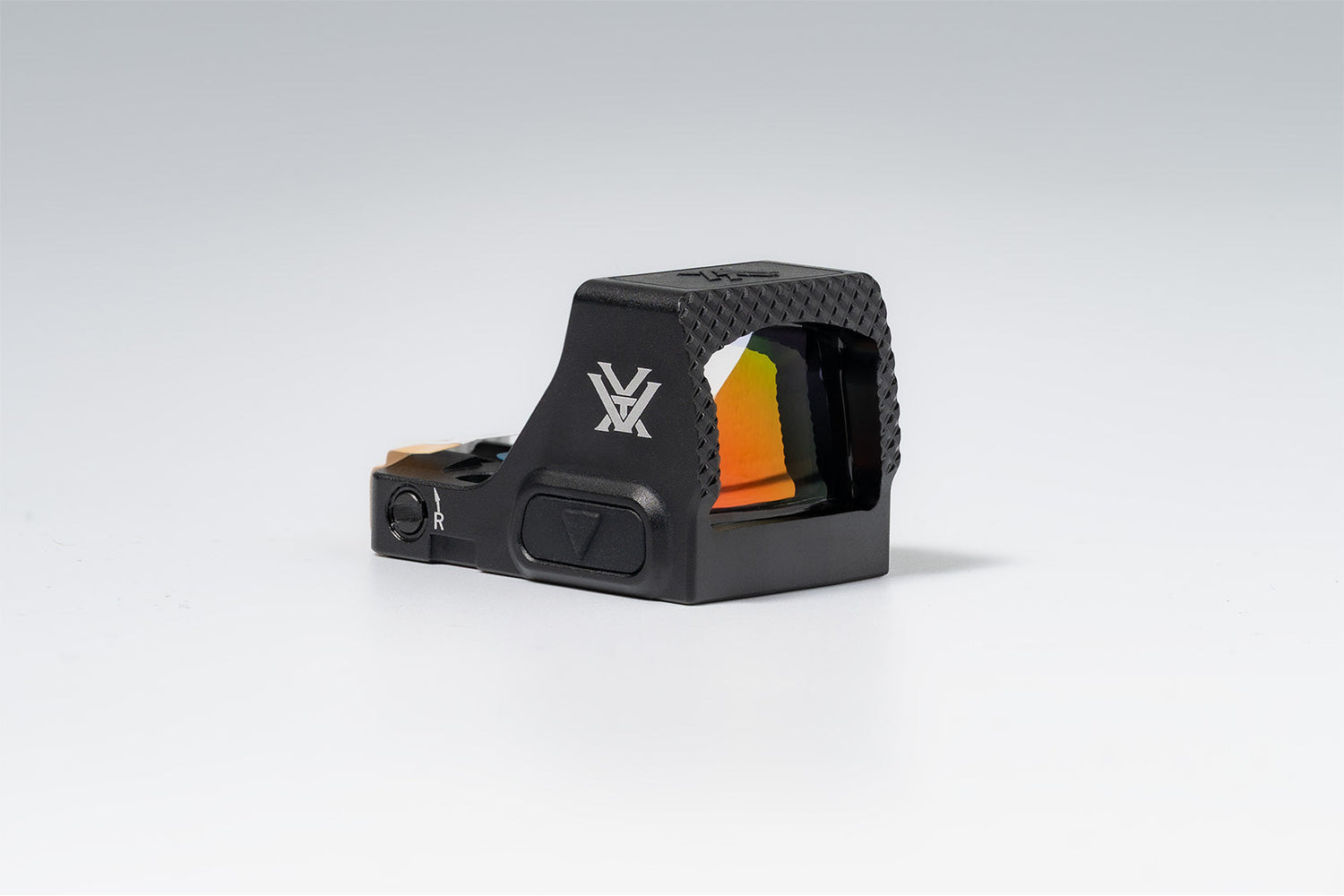

Vortex Defender CCW

Ultra-Compact Red Dot Sight for Concealed Carry

Designed with modern discreet carry in mind, this ultra-slim reflex optic offers fast target acquisition in critical situations—without compromising concealability. Its compact footprint and lightweight design make it ideal for use on slimline pistols and micro-compact platforms, while still delivering robust performance you can rely on.

Technical Specifications

• Magnification: 1x (true zero magnification for natural aiming)
• Reticle Options: 3 MOA or 6 MOA red dot
• Dot Color: Bright red for high contrast visibility
• Adjustment Increments: 1 MOA per click
• Windage/Elevation Adjustment Range: 105 MOA / 110 MOA
• Parallax: Practically parallax-free at typical engagement distances
• Eye Relief: Unlimited

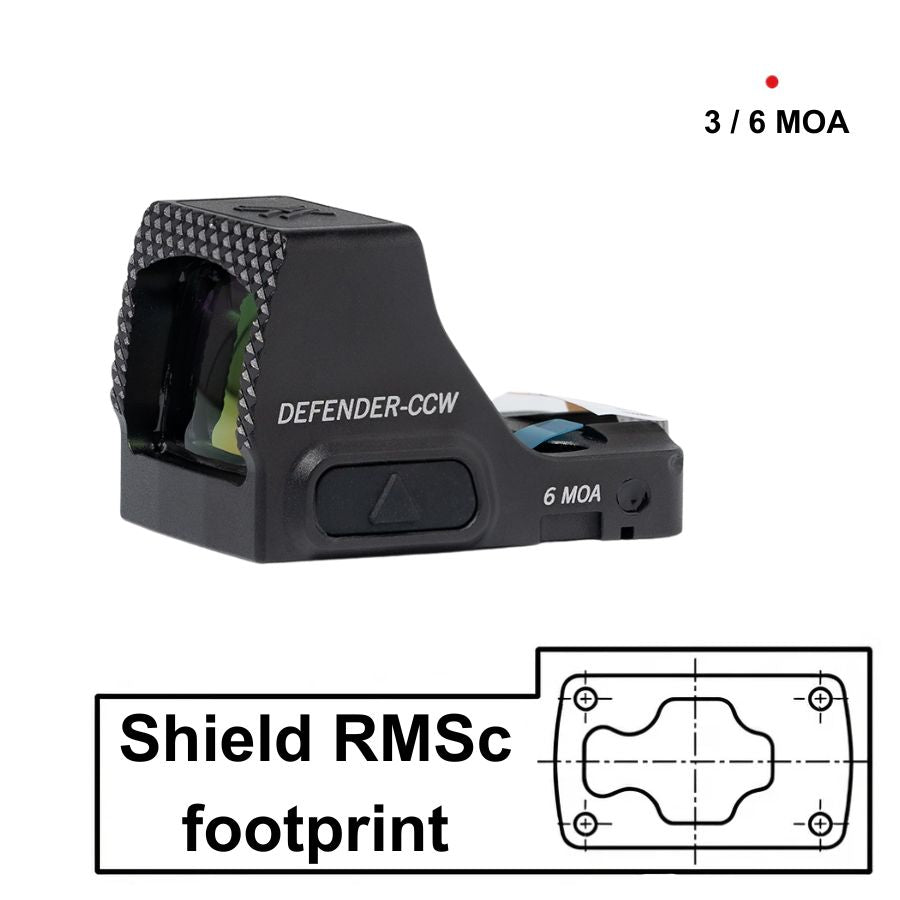

• Mounting Interface: Compatible with RMSc-style mounting patterns
• Overall Length: 1.59 inches
• Weight: 0.95 ounces

Performance & Features

• Glass: Coated aspherical lens offers a crisp, distortion-free image
• Brightness Settings: 10 levels total (8 for daytime, 2 night-vision compatible)
• Motion Activation: Auto-wake feature activates the optic on movement
• Auto-Shutoff: Powers down after 10 minutes of inactivity to conserve battery
• Durability Enhancements: Shock-absorbing polymer insert protects the housing from impact
• Textured Front Surface: Engineered for emergency slide racking against hard surfaces

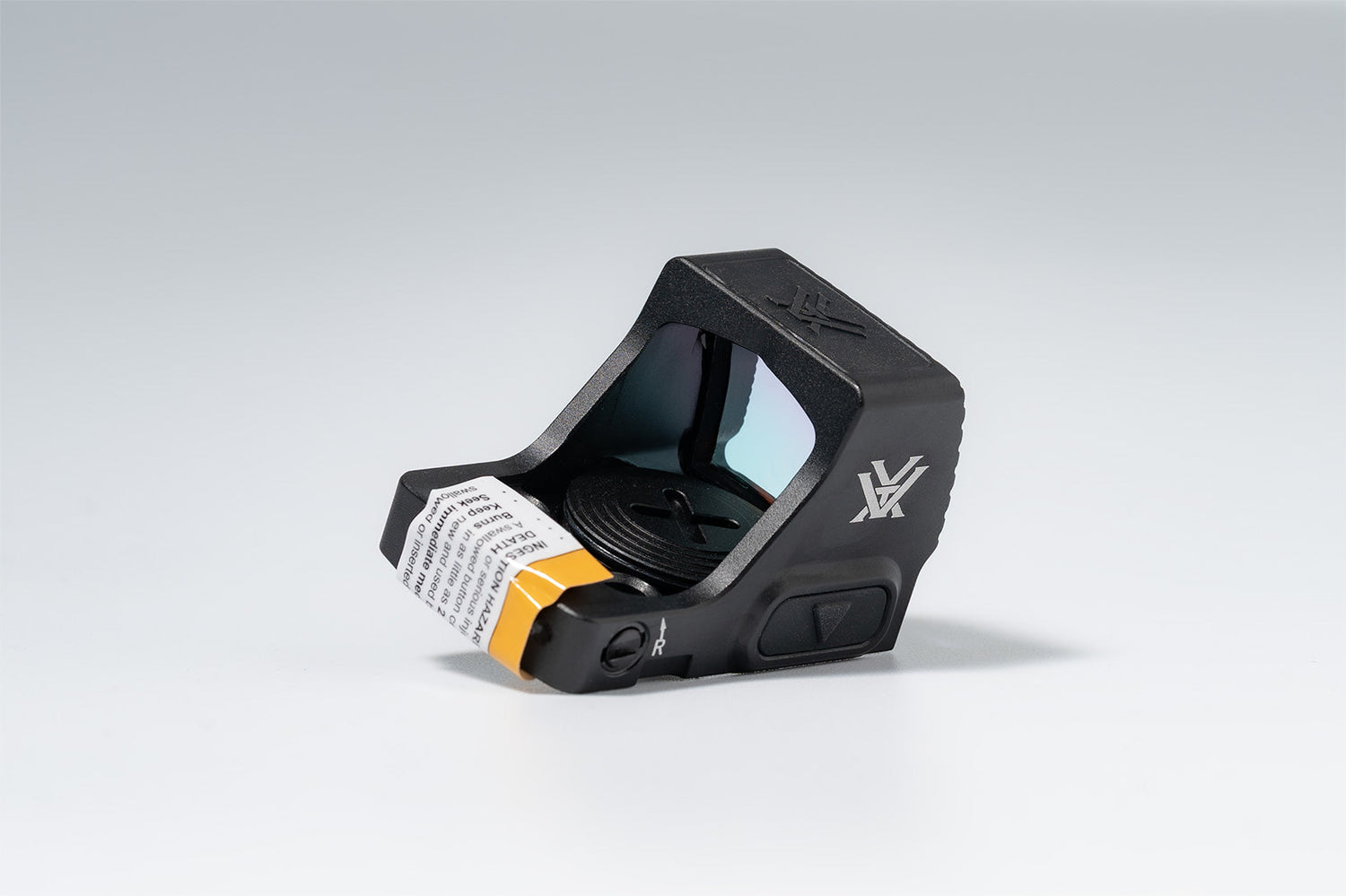

• Battery Access: Convenient top-loading battery compartment—no re-zero required
• Weather Resistance: Waterproof and fog-resistant, sealed against the elements
• Thermal Stability: Performs across wide temperature ranges without fogging or failure
• Exterior Finish: Matte anodized coating reduces glare and resists corrosion
• Chassis Construction: Machined from a single aluminum block for strength and minimal weight

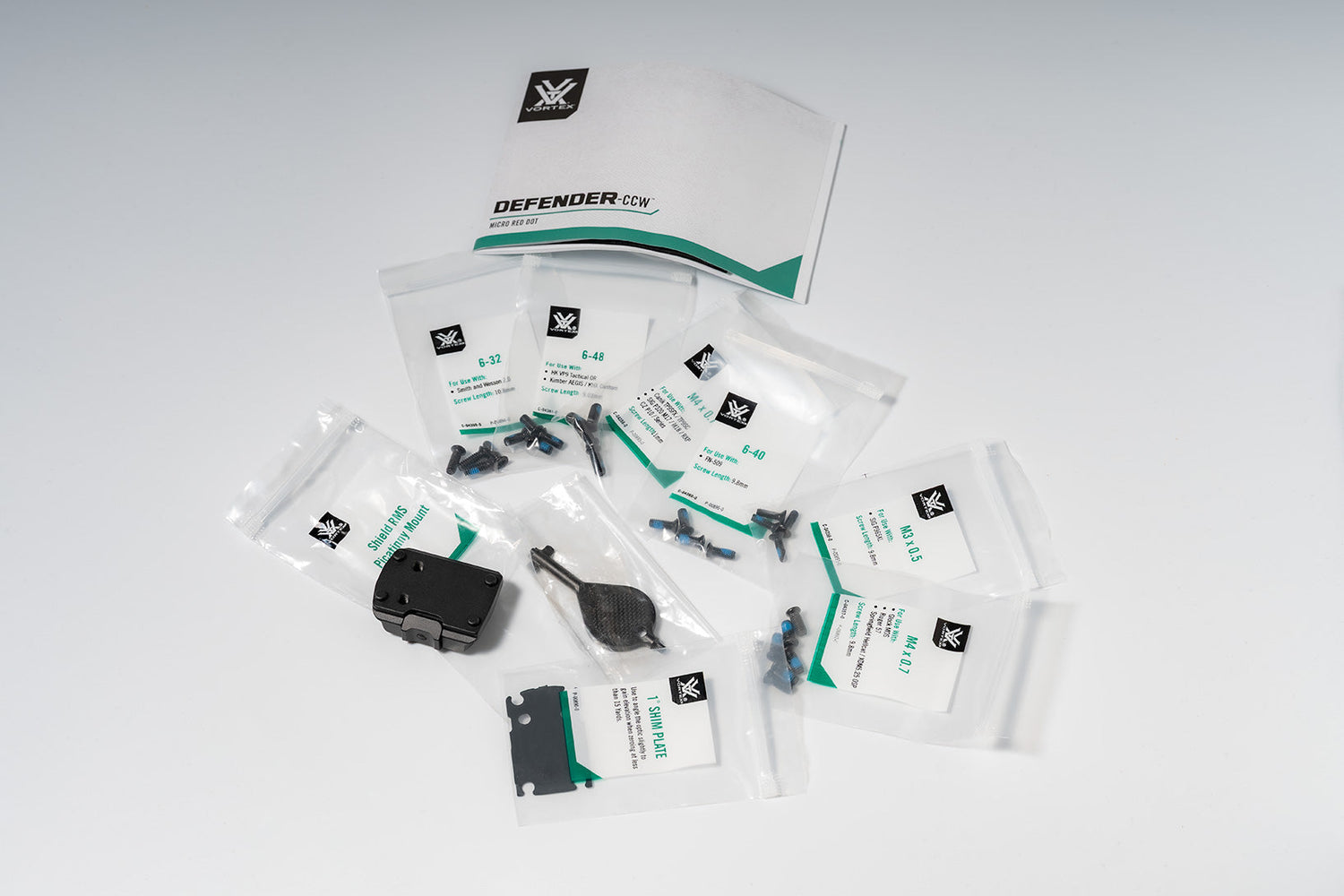

Included in the Package

• 1° shim plate for angled adjustment

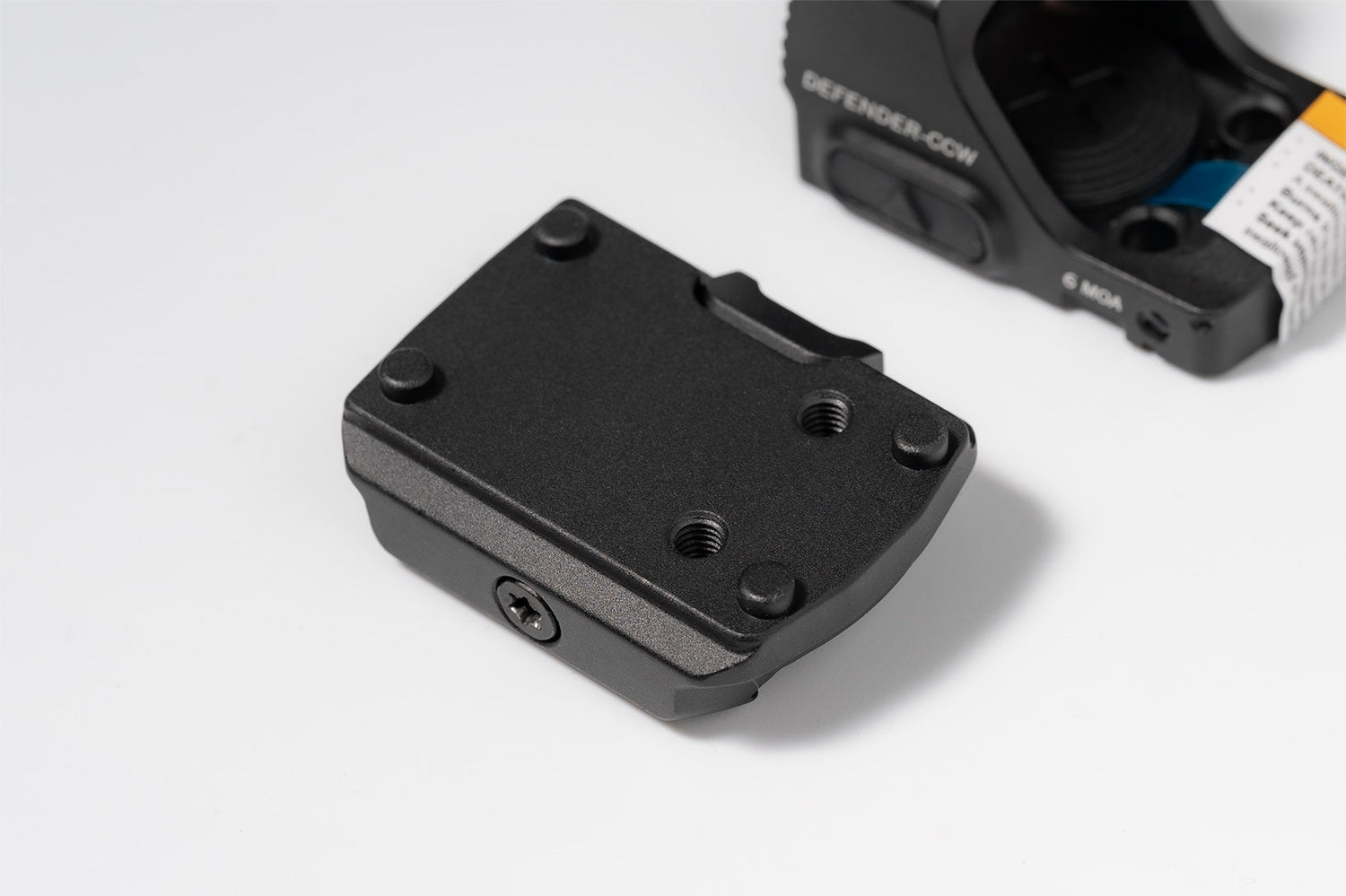

• Mounting plate for standard rail systems

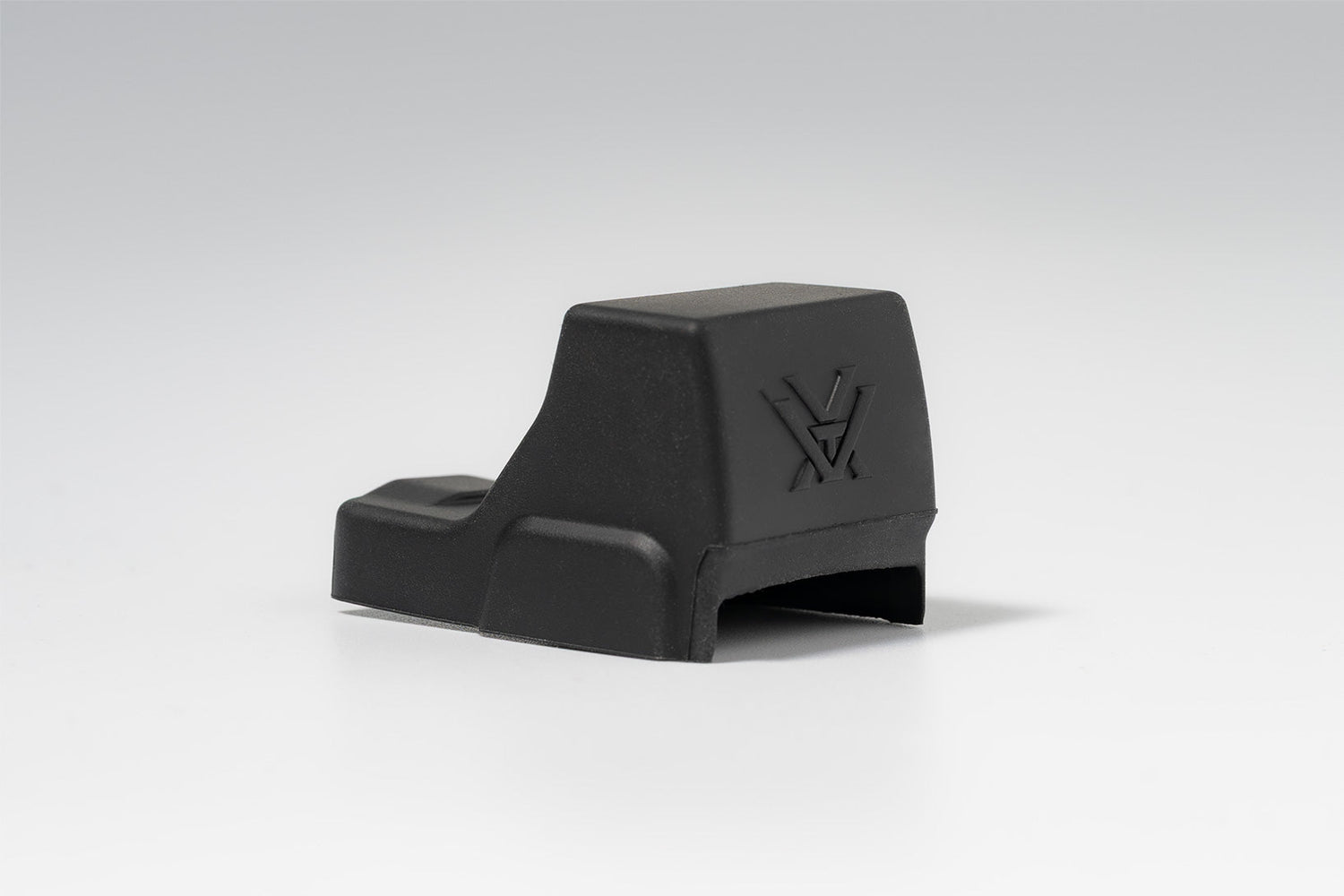

• Protective rubber cover
• Microfiber lens cloth
• CR1632 lithium battery
• Multi-purpose adjustment tool
• Six sets of common mounting screws
